Removing and installing radiator fan - vehicles up to 10.2004
Removing and installing radiator fan - vehicles up to 10.2004

Removing
–  Remove radiator cowl → Chapter.

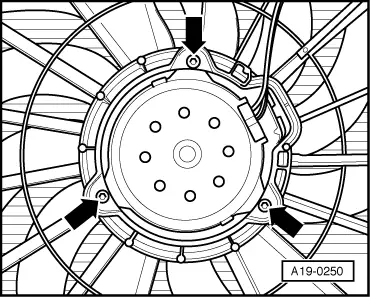

–  Unbolt radiator fan motor from radiator cowl -arrows-.
–  Move wiring clear.
–  Remove radiator fan motor.
Installing
Installation is carried out in the reverse order; note the following:
–  Install radiator cowl → Chapter.
Tightening torque
  A19-0250
ComponentNm
Radiator fan motor to radiator cowl3
