Unplugging electrical connector at coolant temperature display senderG2 - vehicles with 2.0 ltr. MPI engine
Unplugging electrical connector at coolant temperature display sender -G2- - vehicles with 2.0 ltr. MPI engine

Procedure
–  Detach air intake hose -arrow- at air mass meter -G70-.
  A10-1186
–  Remove air intake hose between air duct -1- at intake manifold and crankcase breather -2-.
  A10-0902

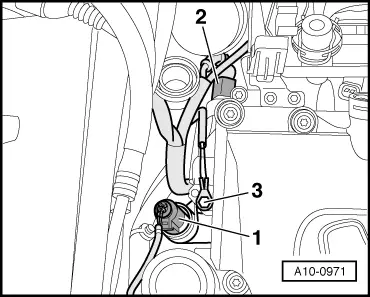

–  Unplug electrical connector -1- at coolant temperature display sender -G2-/-G62-.
  Note
Disregard -Item 2- and -Item 3-.
Installation is carried out in the reverse order; note the following:
  Note
Secure all hose connections with the correct type of hose clips (same as original equipment) → Parts catalogue.
  A10-0971
