A4 Mk3

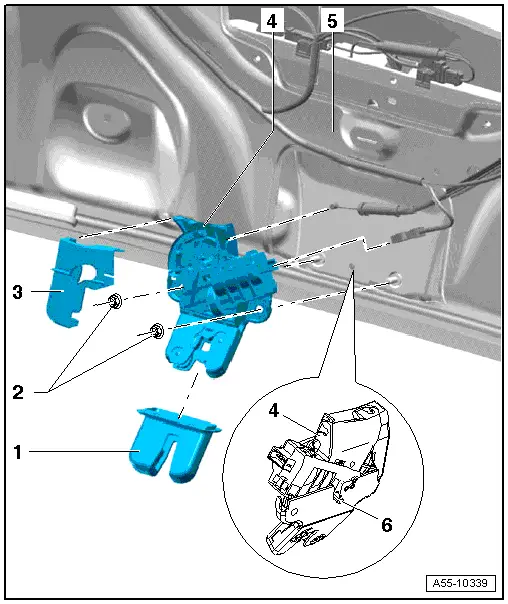

| Removing and installing rear lid lock |
| 1 - | Cover |
| q | Before removing rear lid trim, detach from rear lid lock. |
| 2 - | Nut |
| q | 21 Nm |
| 3 - | Cover for rear lid lock |
| q | Cover should engage audibly in rear lid lock on installation. |
| 4 - | Rear lid lock |
| q | Before removing, detach cover for rear lid lock. |
| q | Rear lid trim removed → Rep. gr.70 |
| q | Unplug electrical connector. |
| q | Detach manual release cable if necessary. |
| q | Unscrew nuts and detach rear lid lock. |
| q | Pull rear lid lock with clip out of centring hole. |
| 5 - | Centring hole |
| 6 - | Centring clip |
| q | To install, first press clip on rear lid lock into centring hole |
