Removing and installing mounting for impact bar - vehicles without towing bracket
Removing and installing mounting for impact bar - vehicles without towing bracket
Removing and installing mounting for impact bar - vehicles without towing bracket
Removing
–
Remove bumper cover (rear)
→ Chapter
.
–
Remove impact bar
→ Chapter
.
–
Remove fastening rings
→ Rep. gr.70
.
–
Detach luggage compartment side trim (left and right) at rear
→ Rep. gr.70
.
–

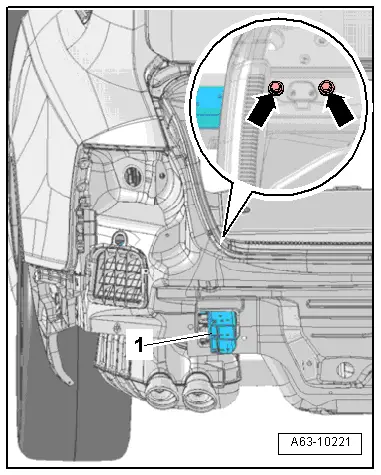

Unscrew bolts
-arrows-
and detach mounting
-1-
for impact bar.
Installing
l
Tightening torque
→ Chapter
Installation is carried out in the reverse order; note the following:
–
Install luggage compartment side trim (left and right)
→ Rep. gr.70
.
–
Install fastening rings
→ Rep. gr.70
.
–
Install impact bar
→ Chapter
.
–
Install bumper cover (rear)
→ Chapter
.
