Removing and installing mirror adjustment unit
Removing and installing mirror adjustment unit

Removing
–  Remove mirror glass → Chapter.

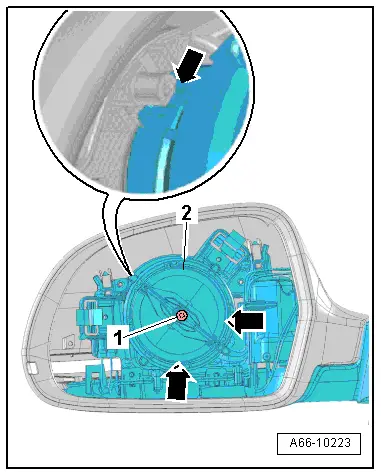

–  Unscrew bolt -1- from mirror adjustment unit -2-.
–  Release retaining tabs -arrows- and detach mirror adjustment unit.
  A66-10223

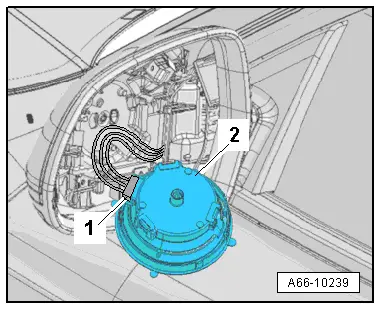

–  Unplug electrical connector -1- at mirror adjustment unit -2-.
Installing
l  Tightening torque → Chapter
Installation is carried out in the reverse order; note the following:
–  Press mirror adjustment unit onto mirror mounting until it engages audibly.
  A66-10239
