A4 Mk3

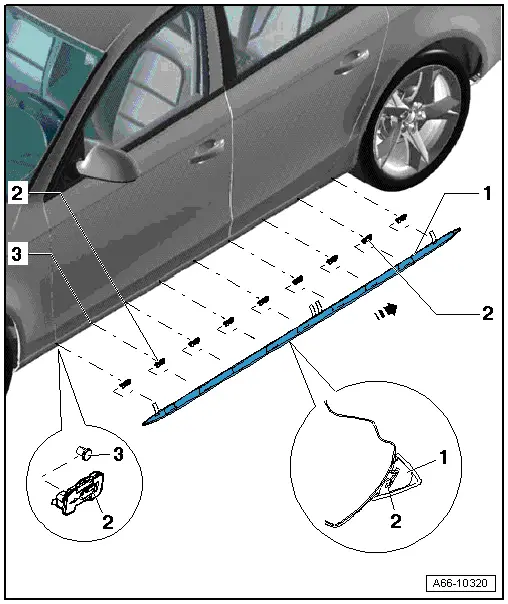

| 1 - | Stone deflector strip |
| q | Removing: |
| – | Heat bonding areas with hot-air blower and gradually pull stone deflector strip off side member to the side. |
Note| When the stone deflector strip is detached, the clips are pulled off the retaining pin and must be renewed. |
| q | Installing: |
Note| Side member must be free of dust and grease in area of adhesive tape. |

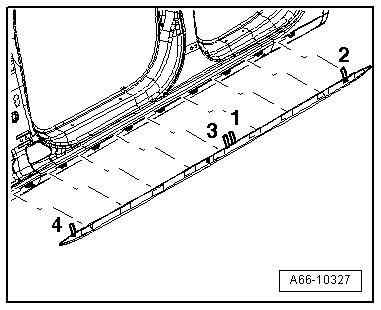

| – | Kink protective film removal aids upwards so they are reachable when stone deflector strip makes contact with side member. |
| – | Push stone deflector strip onto clips as far as stop, working from rear to front. |
| – | Follow the order of removal for removal aids. |
| – | Gradually press stone deflector strip firmly onto side member. |
| 2 - | Clip |
| q | 9x |
| q | Installation direction for clip is embossed. |
| q | Slide clips onto studs in correct direction and engage. |
| q | Align clips lengthwise to side member. |
| 3 - | Stud |
|
|
