A4 Mk3

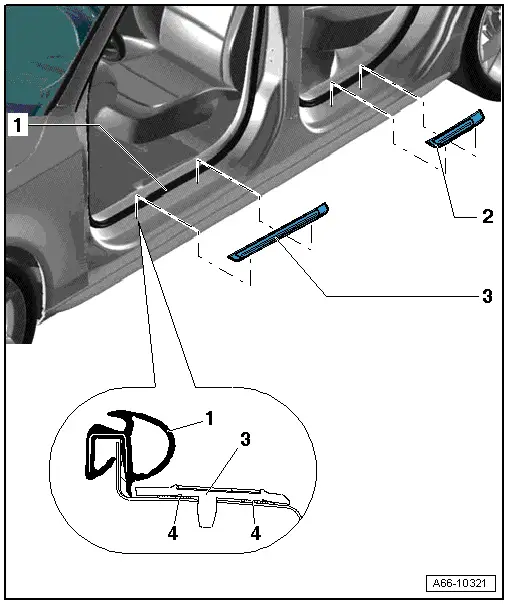

Exploded view - removing and installing outer sill panel trim
Exploded view - removing and installing outer sill panel trim
  Note
t  The sill panel trim is secured to the side member with adhesive tape.
t  It is damaged irreparably when removed.

1 - Inner door seal
2 - Sill panel trim (rear)
q   Removing:
–  Heat sill panel trim with a hot-air blower and lift off.
q   Installing:
–  Side member must be free of dust and grease in bonding area.
–  Heat bonding surface to approx. 40° C using hot-air blower.
–  Peel protective film off adhesive tape.
–  Insert sill panel trim with centring pins into side member and press firmly into place working from front to rear.
3 - Sill panel trim (front)
q   Removal and installation as described for sill panel trim (rear).
4 - Adhesive tape
q   Peel off protective film before mounting.
