| Removing and installing tank filler flap locking motor -V 155- |
| 1 - | Cable for manual release |
| q | Routing → Item |
| 2 - | Tank filler flap locking motor -V 155- |
| q | Removing: |
| – | Tank flap removed |
| – | Detach cable from convenience system central control unit -J393- in luggage compartment and pull through towards the front. |
| – | Detach tank filler flap locking motor -V 155- from body flange towards the front and unplug electrical connector. |
| q | Installing: |
| – | Push tank filler flap locking motor -V 155- onto flange and at the same time push manual release through into luggage compartment. |
| 3 - | Tank flap |
| q | Removing: |
| q | Must be renewed following removal → Anchor |
| – | Open flap and unscrew bolt. |
| – | Pull flap out of side panel slightly on side of bolted joint. |
| – | Pull flap fully out of side panel at an angle and towards rear. |
| q | Installing: |
| – | Guide cable through opening in tank flap cup. |
| – | Insert tank flap at an angle until retaining tabs engage at flange in side panel. |
| – | Bolt together tank flap and tank filler flap locking motor with bolt -4-. |
| 4 - | Bolt |
| q | 1.7 Nm |
| 5 - | Tank flap cup |
| 6 - | Drain hose |

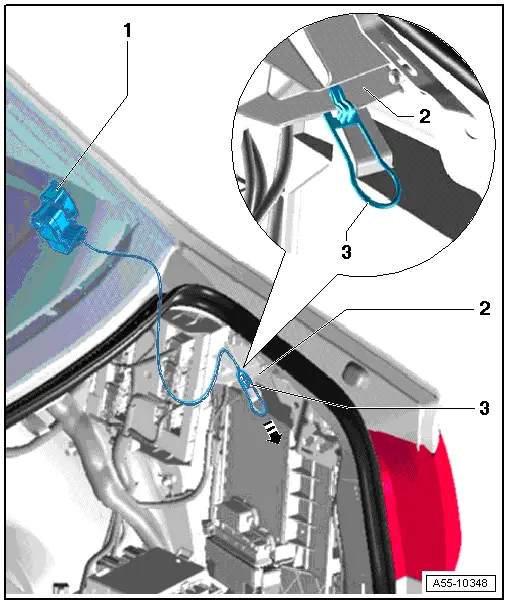

| Manual release for tank flap |
| 1 - | Tank filler flap locking motor -V 155- |
| 2 - | Cable for manual release |
| q | Insert tank filler flap locking motor -V 155- with cable through tank flap opening, as shown. |
| q | Pull cable through towards rear into interior and fit with lug on flange on convenience system central control unit -J393-. |
| 3 - | Side panel |
