A4 Mk3

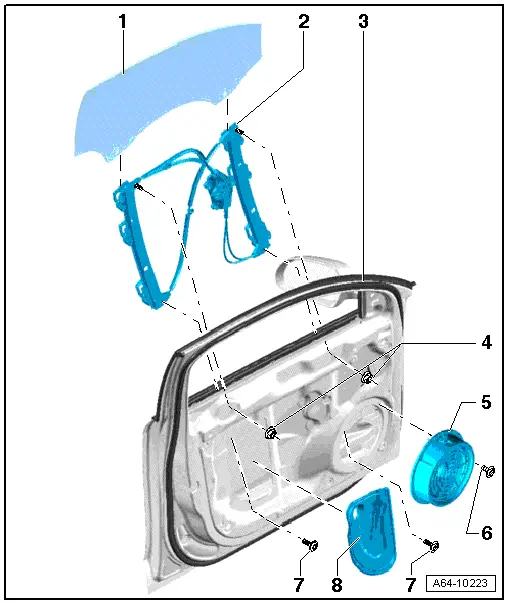

Exploded view - front door window
Exploded view - front door window
  Note
Window regulator must be fitted before installing the door window.

1 - Door window
q   Removing → Chapter
2 - Window regulator
q   Remains installed during removal of door window.
3 - Door
4 - Nuts
q   6 Nm
5 - Loudspeaker
q   Removed → Rep. gr.91.
6 - Bolt
q   1.5 Nm
7 - Bolt
q   6 Nm
8 - Cover
q   Unclip
