Exploded view - rear door window > < Exploded view - front door window

A4 Mk3

Removing and installing door window

Removing and installing door window
1 - Door window
q   Cover for door → Rep. gr.70 and loudspeaker → Rep. gr.91 removed
–  To remove, release catches -arrow- from actuator -2- using a screwdriver and pull window -1- up slightly in window guide.
–  Tilt window towards front and pull it upwards, out of door.
2 - Window regulator
q   Window regulator remains installed in door.

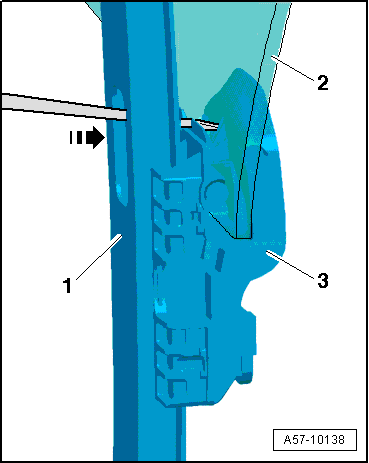

Releasing door window
–  Lower door window.
–  Use screwdriver or similar tool to press actuator -3- outwards through opening in window guide -1- and hole in door window -2- in order to release actuator.
–  Pull window upwards out of actuator.
–  Tilt window diagonally forwards and pull upwards out of window guide.
  A57-10138
Inserting door window
–  Fit door window -1- in window guide of door, inserting it diagonally towards front of vehicle.
–  Align window in window guides at front and rear and push window downwards.
–  Press window down into actuators.
–  The actuators then engage in the window.
  A57-10137

Exploded view - rear door window > < Exploded view - front door window
