A4 Mk3

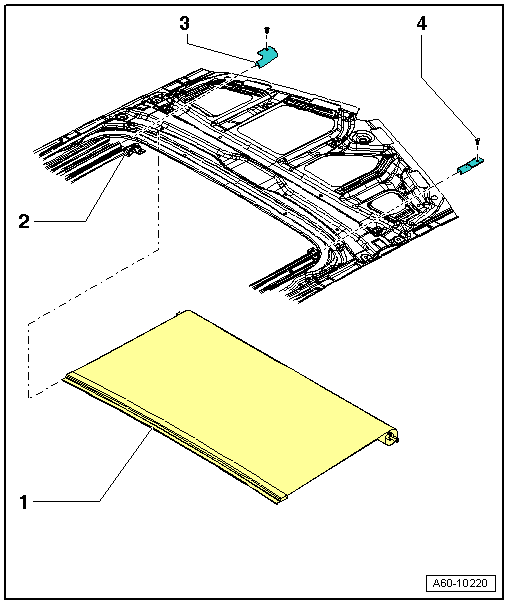

Exploded view - sun blind

Exploded view - sun blind
1 - Sun blind
q   Removing → Chapter
–  Pull tension bow off sun blind fabric (at side).
2 - Actuator at sun blind cable
q   Can only be renewed together with cable
q   Removing → Chapter
3 - Cover for cable
4 - Bolt
q   1 Nm
