A4 Mk3

Renewing sun blind cables
Renewing sun blind cables
–  Sunroof frame removed.
–  Sunroof roller blind control unit -J394- removed.

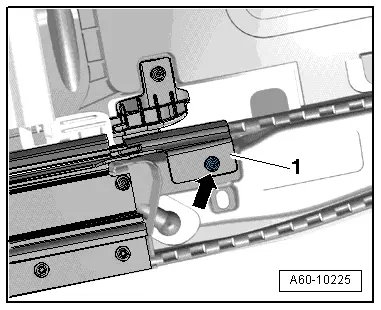

–  Unscrew bolt -arrow- and detach stop -1-.
–  Pull cable out of frame towards rear.
–  When installing, make sure that actuators run parallel.
Adjusting parallel running for cables
l  When installing, the new cables must be adjusted so that they run parallel.
–  Draw cables into frame on both sides.
  A60-10225
–  Insert stop -1- and secure with bolt.
–  Slide cables on both sides towards rear as far as stop and install sunroof roller blind control unit -J394-.
–  Perform adaption.
  A60-10225
