A4 Mk3

Removing and installing wind deflector
Removing and installing wind deflector

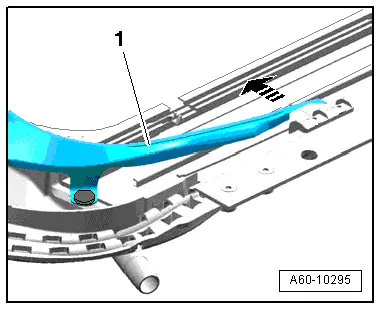

Removing:
–  Open sunroof fully.
–  Press wind deflector down at front and pull arms of wind deflector out of mounting towards centre of vehicle.

–  Take wind deflector -1- out of sunroof opening diagonally towards rear.
–  Install in reverse order of removal.
Installing spring for wind deflector
  A60-10295

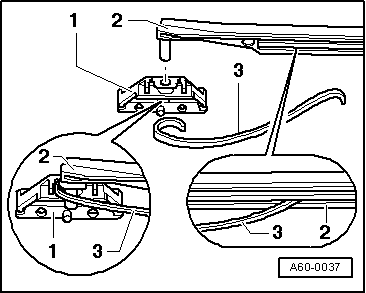

–  Place spring -3- in bracket -1- for wind deflector.
–  Insert spring in outer groove of wind deflector -2-.
  A60-0037
