Removing and installing centre console
Removing and installing centre console

Removing
–  Remove insert for centre console → Chapter.
–  Remove ashtray (front) → Chapter.

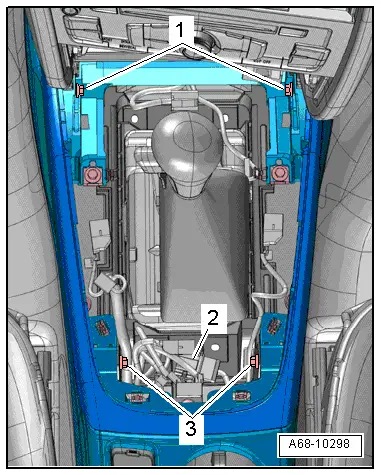

–  Equipment version with 12 V socket: Unplug electrical connector -2-.
–  Remove bolts -1- and -3-.
–  Equipment version with centre armrest (front): Remove centre armrest (front) → Chapter.
  A68-10298
–  Equipment version without centre armrest (front): Remove trim for centre console → Chapter and remove nuts -1-.
–  Equipment version with telephone/mobile phone: Unplug electrical connectors.
–  Lift centre console, pull it out of dash panel towards rear and remove by lifting it over selector lever/gear lever.
Installing
Installation is carried out in the reverse order; note the following:
–  Make sure centre console is flush with dash panel.
Tightening torque → Chapter
  A68-10316
