Removing and installing trim panel for centre console
Removing and installing trim panel for centre console
Removing and installing trim panel for centre console
Removing
–
Remove centre console
→ Chapter
.
–

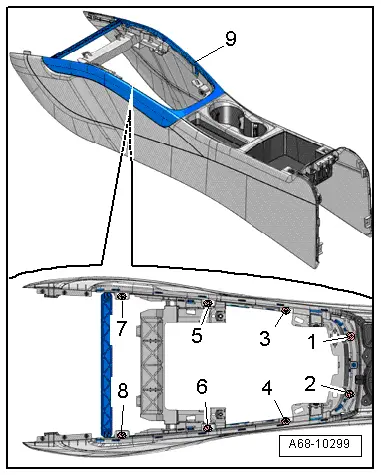

Remove bolts
-1 ... 8-
and detach trim panel for centre console
-9-
.
Installing
Installation is carried out in the reverse order; note the following:
–
Attach felt strips (45 x 8 mm)
-item 2-
on both sides with distance
-a-
to edge at trim panel
-1-
for centre console.
l
Dimension
-a-
= 7 mm
–
Tighten bolts in sequence
-1 ... 8-
.
Tightening torque
