A4 Mk3

Removing and installing cup holder
Removing and installing cup holder

Removing
–  Remove centre console → Chapter.

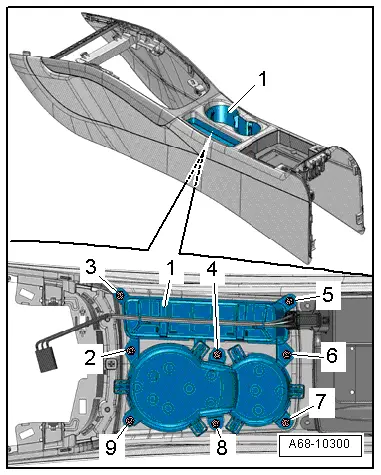

–  Remove bolts -2 ... 9- and detach cup holder -1- downwards.
  A68-10300

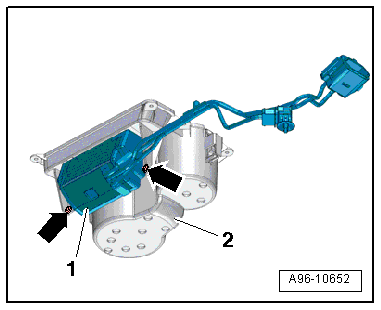

–  Equipment version with DC/AC converter with socket, 12 V - 230 V -U13-: Remove bolts -arrows- and detach DC/AC converter with socket -item 1- from cup holder -2-.
Installing
Install in reverse order of removal.
Tightening torque → Chapter and → Electrical system; Rep. gr.90
  A96-10652
