| Installation is carried out in the reverse order; note the following: |
| –
| Renew bolt for belt buckle. |
| –

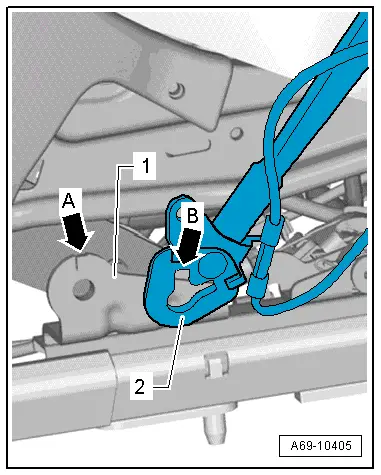

| Position belt buckle -2- so that recess -arrow B- coincides with lug -arrow A- at seat frame -1-. |
| Seat occupied recognition controlling deactivation of front passenger airbag (country-specific version): |
| –
| If the belt buckle for the seat occupied recognition system controlling the deactivation of the front passenger's airbag is renewed, you must complete the form for the seat occupied recognition system stating the serial number and including the bar code sticker of the new belt buckle, and then send the form to the importer. |
| All vehicles (continued): |

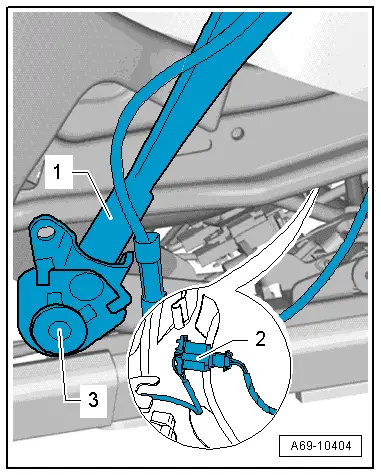

Note | Make sure electrical connectors are fitted correctly (as far as stop) and engage audibly. |
WARNING | The battery must be connected with the ignition switched on. If pyrotechnic components (e.g. airbag or belt tensioner) are inexpertly repaired, this may result in unwanted triggering after connecting the battery. There must not be anyone in the vehicle while you are connecting the battery. |
|
Note | If the airbag warning lamp -K75- indicates a fault following installation, you must interrogate, erase and then re-interrogate the event memory → Vehicle diagnostic tester. |
|
|
|
