Removing and installing belt end fitting (front)
Removing and installing belt end fitting (front)
  Note
Removal and installation are identical on the left and right.

Removing
–  Move front seat as far forwards as it will go.

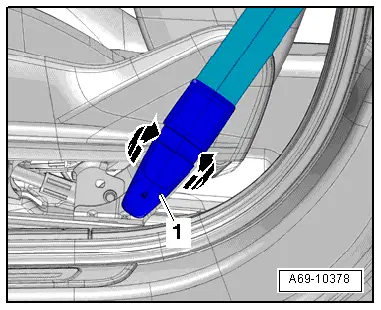

–  Unclip cover -1- at belt end fitting -arrows- and fold upwards.
  A69-10378
  Caution
t  Spring -2- could be bent if it is not removed correctly. The three-point seat belt must be renewed if the spring is bent.
t  Only move spring -2- to the extent required to release the retaining tab on the spring.

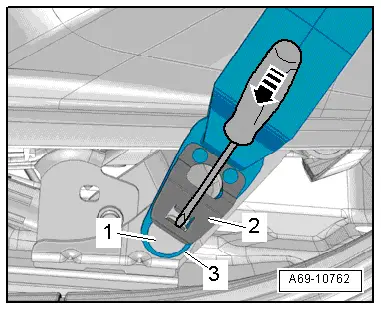

–  Insert small screwdriver into opening on spring -arrow- and release retaining tab on spring -2-.
–  Slide belt end fitting -3- downwards and disengage at stud -1-.
  A69-10762
Installing
Installation is carried out in the reverse order; note the following:
  Caution
t  Spring -2- could be bent if it is not removed correctly. The three-point seat belt must be renewed if the spring is bent.
t  Only move spring -2- to the extent required to release the retaining tab on the spring.

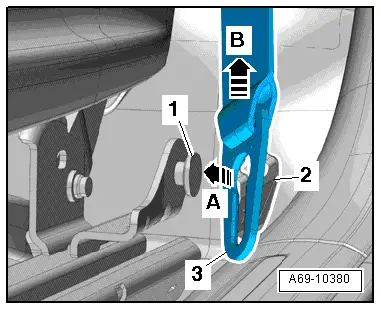

–  Engage belt end fitting -3- at stud -1--arrow A- and pull upwards -arrow B- until retaining tab on spring -2- engages audibly at stud head.
  A69-10380
