Removing and installing belt guide (front)
Removing and installing belt guide (front)
  Note
Removal and installation are identical on the left and right.

Removing
–  Remove B-pillar trim (bottom) → Chapter.

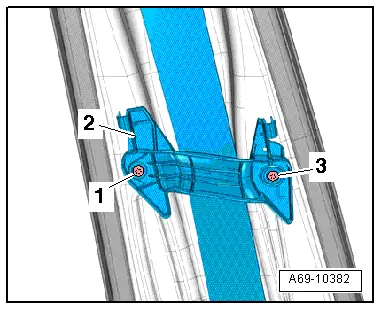

–  Unscrew bolts -1- and -3- and detach belt guide (front) -2-.
Installing
Installation is carried out in the reverse order; note the following:
–  Make sure that belt is not trapped or damaged.
–  Lay belt in recess in belt guide (front) -2-.
–  Insert centring pin of belt guide (front) in holes in B-pillar and tighten bolts -1- and -3-.
Tightening torque → Chapter
  A69-10382
