Caution | t

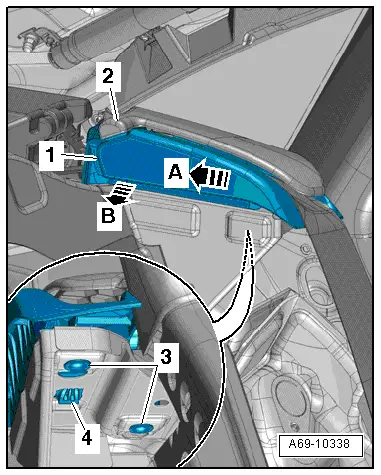

| When removing and installing belt guide -1-, never turn bolts -3-. They have been set by the manufacturer. |
| t
| Renew entire belt guide if damaged. |
|
| –
| Equipment version with side airbag (rear): Remove side airbag (rear) → Chapter. |
| –
| Equipment version with fixed rear seat backrest: Remove fixed rear seat backrest → Chapter. |
| –
| Remove foam element below belt guide. |
| –
| Press retaining hooks -4- on belt guide upwards and hold. |
| –
| Slide belt guide -1- to rear -arrow A- until bolt heads -3- can be disengaged from bracket at body. |
| –
| Slightly lift C-pillar trim -item 2- and take out belt guide sideways towards interior of vehicle -arrow B-. |
| –
| Outer belt guide (rear): Unplug electrical connector for rear parking aid warning buzzer -H15-. |
| Installation is carried out in the reverse order; note the following: |
| –
| Place belt in recess in belt guide -1- and position belt guide on bracket. |
| –
| Insert belt guide with bolt heads -3- in guide elements at bracket. |
| –
| Press belt guide downwards and at the same time pull it forwards, making bolt heads engage in guide elements. |
| –
| Pull belt guide forwards until retaining hook engages audibly. |
|
|
|
Note
