A4 Mk3

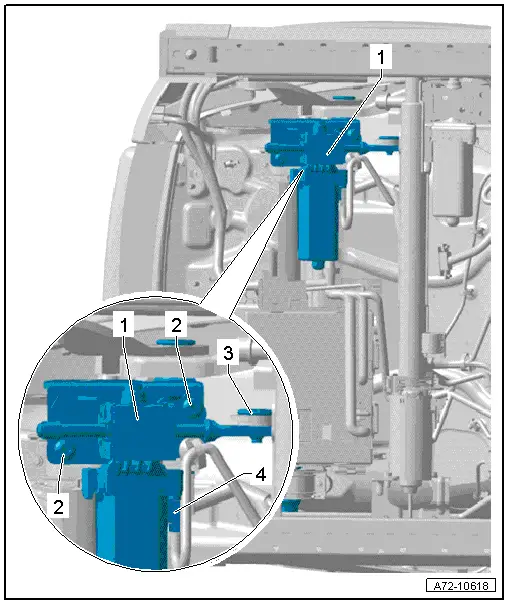

| Exploded view of seat rake adjustment motor |
| 1 - | Seat rake adjustment motor |
| q | Driver side: driver seat rake adjustment motor -V243- |
| q | Passenger side: front passenger seat rake adjustment motor -V244- |
| q | Removing and installing → Chapter |
| 2 - | Bolts |
| q | 2x |
| q | Self-locking |
| q | Always renew after removing |
| q | Always clean threaded holes for bolts using e.g. a thread tap |
| q | 10 Nm |
| 3 - | Bolt |
| q | Self-locking |
| q | Always renew after removing |
| q | Always clean threaded holes for bolts using e.g. a thread tap |
| q | 20 Nm |
| 4 - | Electrical connector |
