A4 Mk3

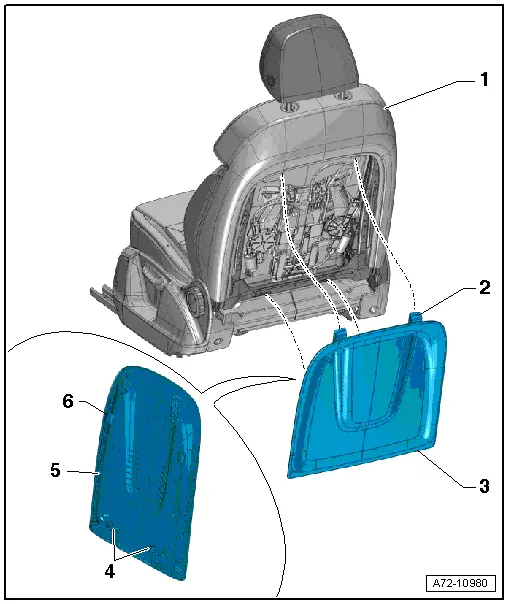

| Exploded view of one-piece backrest cover panel - equipment version |
Note| t | The exploded view relates to the standard seat (front). The backrest cover panel is similar on the other seat versions. |
| t | The illustration shows the equipment version with the backrest cover panel without luggage net. |
| 1 - | Front seat |
| 2 - | Hook (top) |
| q | 2x |
| 3 - | Backrest cover panel |
| q | Depending on equipment version |
| q | Removing and installing → Chapter |
| 4 - | Hook (bottom) |
| q | 2x |
| 5 - | Retaining hook (bottom, side) |
| q | 2x |
| 6 - | Retaining tabs (top, side) |
| q | 2x |
