Removing and installing trim for backrest frame
Removing and installing trim for backrest frame
  Note
Removal and installation are described for the standard seat (front). The procedures are similar for the other seat versions.

Removing
–  Remove backrest cover panel → Chapter.

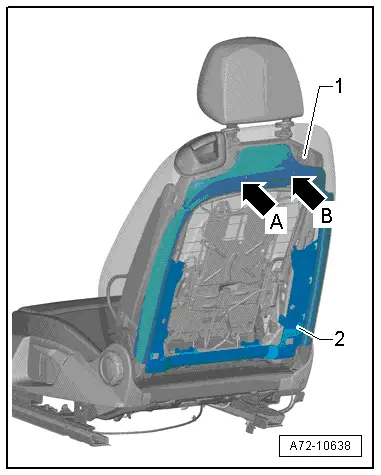

–  Detach padding from backrest until the two retaining tabs -arrow A- and -arrow B- on each trim -2- for backrest frame are visible from rear.
  A72-10638

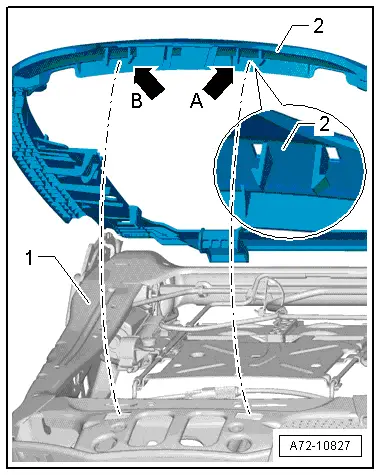

–  Disengage retaining tabs -arrow A- and -arrow B- on trim for backrest frame -2- at backrest frame -1-.
  A72-10827

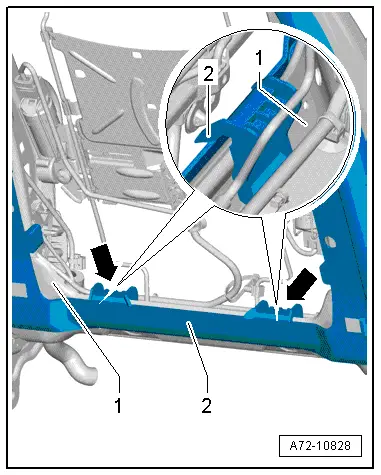

–  Lift trim -2- for backrest frame off backrest frame -1-.
–  In doing so, disengage bottom shoes -arrows- (2x) on backrest cover panel.
–  Detach trim for backrest frame from backrest frame.
Installing
Install in reverse order of removal.
  A72-10828
