A4 Mk3

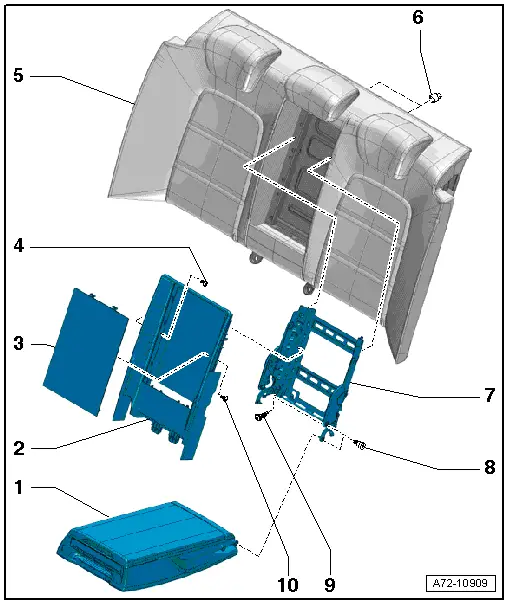

| Exploded view of centre armrest and cover for backrest bracket with trim for backrest bracket (fixed rear seat backrest) |
| 1 - | Centre armrest |
| q | Removing and installing → Chapter |
| Equipment version with cup holder: |
| q | Removing and installing trim for cup holder → Chapter |
| q | Removing and installing cup holder → Chapter |
| 2 - | Cover |
| q | For backrest bracket |
| q | Removing and installing → Chapter |
| 3 - | Trim |
| q | For backrest bracket |
| q | Removing and installing → Chapter |
| 4 - | Bolt |
| q | 2x |
| q | 4 Nm |
| 5 - | Fixed rear seat backrest |
| q | Depending on equipment version |
| q | Removing and installing → Chapter |
| 6 - | Nut |
| q | 2x |
| q | 5 Nm |
| 7 - | Bracket |
| q | With hinges |
| q | Removing and installing → Chapter |
| 8 - | Bolt |
| q | 4x |
| q | Self-locking |
| q | Always renew after removing |
| q | 11 Nm |
| 9 - | Bolt |
| q | 2x |
| q | 8 Nm |
| 10 - | Bolt |
| q | 0.9 Nm |
