Removing and installing back panel trim (fixed rear seat backrest)
Removing and installing back panel trim (fixed rear seat backrest)
Special tools and workshop equipment required

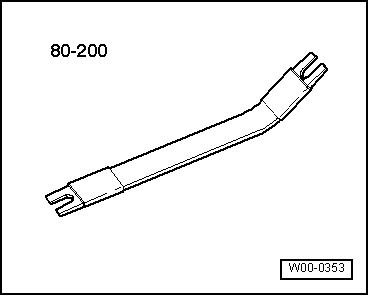

t  Removal lever -80 - 200-
  W00-0353
Removing
  Note

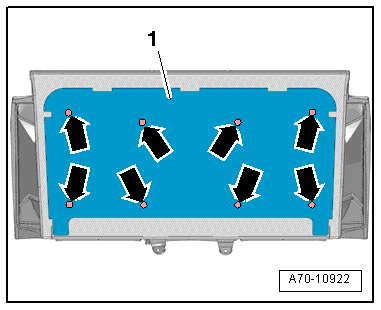

For greater clarity, rear seat backrest has been removed in illustration.
–  Detach retaining clips -arrows- using removal lever -80 - 200- and remove back panel trim -1-.
Installing
Installation is carried out in the reverse order; note the following:
  Note
Renew any damaged retaining clips.
  A70-10922
