Removing and installing centre armrest - equipment version split armrest
Removing and installing centre armrest - equipment version split armrest
Removing and installing centre armrest - equipment version split armrest

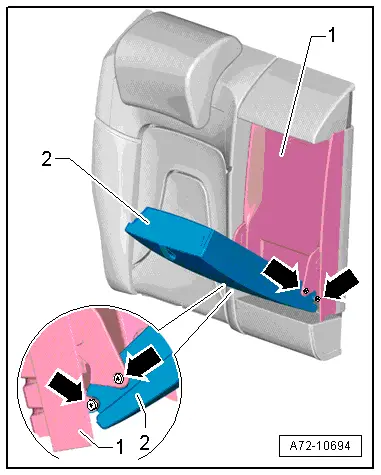

Removing
–
Fold up centre armrest
-2-
so that it is
2
/
3
open.
–
Unscrew bolts
-arrows-
(4x).
–
Detach centre armrest from storage compartment (cover for backrest bracket with lid)
-1-
.
Installing
Install in reverse order of removal.
Tightening torques
→ Chapter
