A4 Mk3

Removing and installing centre bracket
Removing and installing centre bracket

Removing
  Note
To remove and install centre bracket, rear seat backrest must only be disengaged from brackets.
–  Remove seat bench → Chapter.
–  Remove 2/3 section (right-side) and 1/3 section (left-side) of split backrest → Chapter.

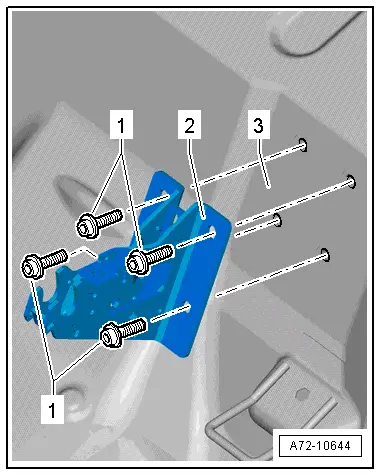

–  Remove bolts -1- (4x).
–  Detach centre bracket -2- from vehicle floor -3-.
Installing
Install in reverse order of removal.
Tightening torques → Chapter
  A72-10644
