A4 Mk3 Rear Seat Outer Bearing Replacement

Removing and installing outer bearing
Removing and installing outer bearing
Special tools and workshop equipment required

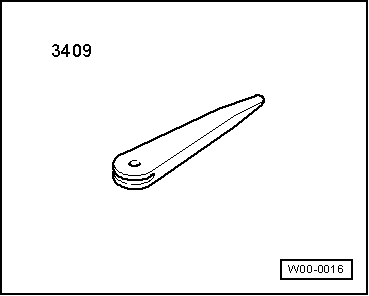

t  Removal wedge -3409-
  W00-0016
Removing
–  Remove 2/3 section (right-side) / 1/3 section (left-side) of split backrest → Chapter.

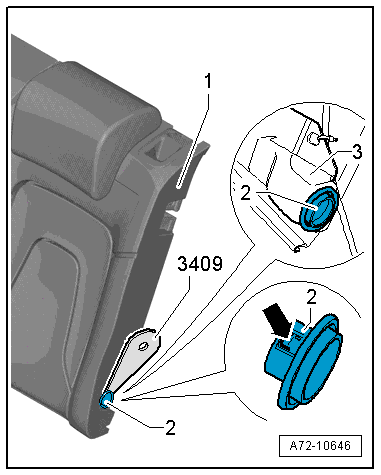

–  Unclip bracket -2- from backrest -1-.
  Caution
Take care not to damage backrest cover when unclipping bracket.
Installing
Installation is carried out in the reverse order; note the following:
–  Make sure all retaining tabs -arrow- are fully engaged in bracket -3- of backrest -1-.
  A72-10646
