A4 Mk3

Removing and installing head restraint
Removing and installing head restraint

Removing

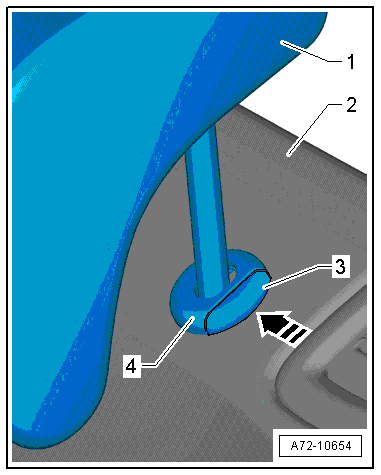

–  Press button -3- for height adjustment at head restraint guide -2- in direction of -arrow- and at the same time pull head restraint -1- as far as possible out of rear seat backrest -2-.
  A72-10654

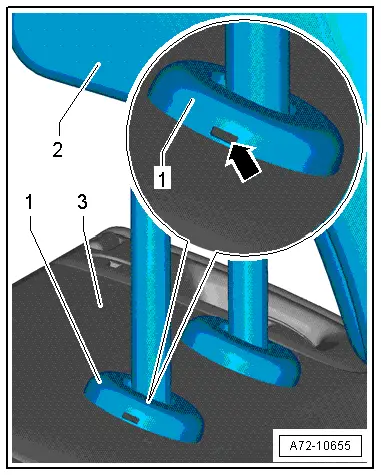

–  Use a small flat screwdriver to press locking spring as far as it will go in opening -arrow- of head restraint guide -1-.
–  Pull head restraint -2- out of rear seat backrest -3-.
Installing
Installation is carried out in the reverse order; note the following:
–  Slide head restraint into rear seat backrest to lowest position.
–  Check whether head restraint is properly locked.
l  It should no longer be possible to pull head restraint out of rear seat backrest.
  A72-10655
