Removing and installing trim for cup holder
Removing and installing trim for cup holder
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing

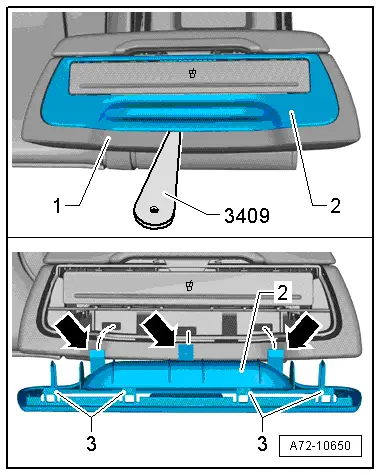

–  Open centre armrest -1-.
–  Prise off trim -2- using removal wedge -3409-.
–  To do so, start at bottom edge and first disengage retaining tabs -arrows-.
–  Then disengage lugs -3-.
–  Detach trim from centre armrest.
Installing
Install in reverse order of removal.
  A72-10650
