A4 Mk3

Removing and installing cup holder
Removing and installing cup holder

Removing
–  Remove trim for cup holder  → Chapter.

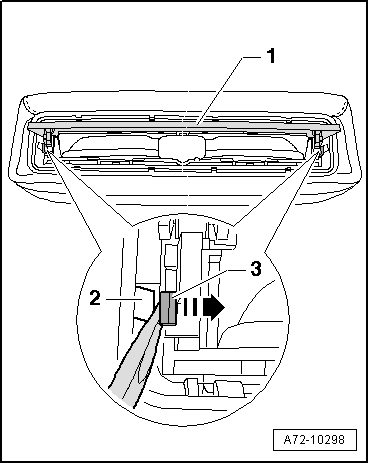

–  Open flap -1- of cup holder.
–  Use a screwdriver to press clip -3- in direction of -arrow- on one side and carefully pull cup holder at trim off centre armrest by way of retaining tab -2-.
–  Proceed in same way on other side.
–  Take out cup holder.
Installing
Install in reverse order of removal.
  A72-10298
