Removing and installing trim for locking mechanism with lock cylinder
Removing and installing trim for locking mechanism with lock cylinder
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing
–  Release backrest.
–  Make sure button -2- (indicator) is in »top« position.

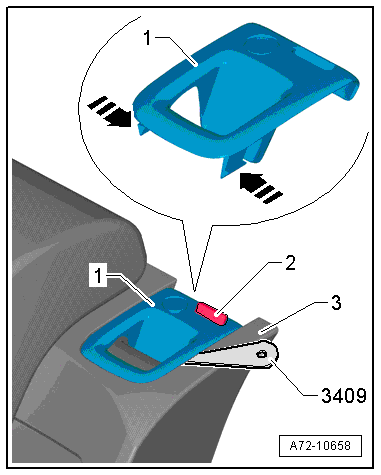

–  Use removal wedge -3409- to press fasteners in direction of -arrows- on both sides of trim.
–  Lift trim -1- off rear seat backrest -3-.
Installing
Installation is carried out in the reverse order; note the following:
–  Make sure button -2- moves freely after fitting trim.
–  When fitting trim -1-, observe correct installation position of lock cylinder → Anchor.
  A72-10658
