Removing and installing centre armrest with flap for load-through hatch > < Exploded view of centre armrest with flap for load-through hatch

A4 Mk3

Removing and installing trim frame
Removing and installing trim frame
Special tools and workshop equipment required

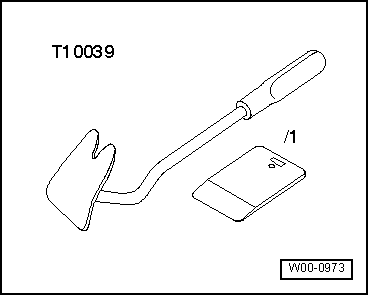

t  Release lever -T10039-
  W00-0973
Removing
–  Open load-through hatch.
–  Prise trim frame -2- off rear seat backrest -1- using release lever -T10039-.
–  Start prising off in top left corner -arrow- and then proceed in direction of -arrow-.
Installing
Installation is carried out in the reverse order; note the following:
–  Make sure trim frame engages fully in rear seat backrest.
  A72-10660
