A4 Mk3

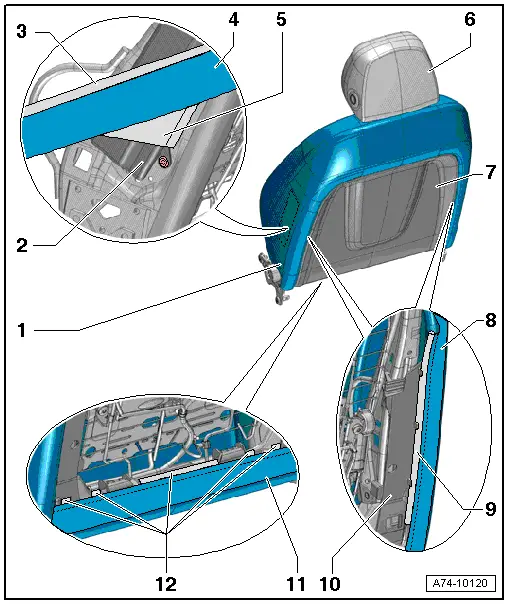

| Exploded view of seat cover and padding (backrest) |
Note| The exploded view relates to the standard or sports seat (front, with manual or electric adjustment) and the convenience seat (front). |
| 1 - | Seat cover |
| q | With padding |
| q | Removing and installing → Chapter |
| q | Detaching cover from padding and assembling → Chapter |
| 2 - | Side airbag |
| q | Depending on equipment version |
| q | Removing and installing → Chapter |
| 3 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover in trim for backrest frame (at side) |
| 4 - | Seat cover |
| 5 - | Pouch |
| q | For side airbag |
| q | Depending on equipment version |
| q | Stitched to cover |
| 6 - | Head restraint |
| With manual adjustment |
| q | Removing and installing → Chapter |
| With electric adjustment |
| q | Removing and installing → Chapter |
| 7 - | Backrest cover panel |
| q | Equipment version with / without luggage net |
| q | Removing and installing → Chapter |
| 8 - | Seat cover |
| 9 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover in trim for backrest frame (at side) |
| 10 - | Trim |
| q | For backrest frame |
| q | Clipped to backrest frame |
| 11 - | Seat cover |
| 12 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover in trim for backrest frame (at bottom) |
