A4 Mk3

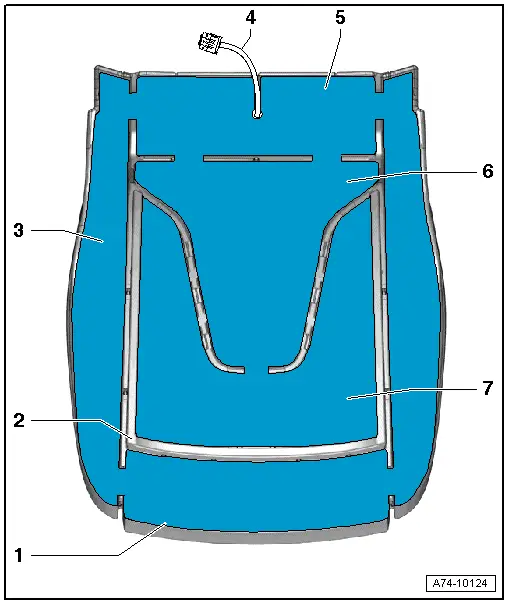

| Overview of seat heating element (convenience seat) |
| 1 - | Seat heating element (front) |
| q | Connected to seat bolster heating elements |
| q | Removing and installing → Chapter |
| 2 - | Padding |
| q | For seat pan |
| 3 - | Seat bolster heating element |
| q | Connected to seat heating elements (front and rear) |
| q | Removing and installing → Chapter |
| 4 - | Wire |
| q | Permanently connected to seat heating element |
| 5 - | Seat heating element (rear) |
| q | Connected to seat bolster heating elements |
| q | Removing and installing → Chapter |
| 6 - | Seat heating element (centre rear) |
| q | Connected to seat heating element (rear) |
| q | Only bonded at edges to spacers |
| q | Removing and installing → Chapter |
| 7 - | Seat heating element (centre front) |
| q | Connected to seat heating element (centre rear) |
| q | Only bonded at edges to spacers |
| q | Removing and installing → Chapter |
