Removing and installing seat heating element (super sports seat)

Removing

–	Remove seat pan cover and padding → Chapter.

–	Detach cover from padding → Chapter.

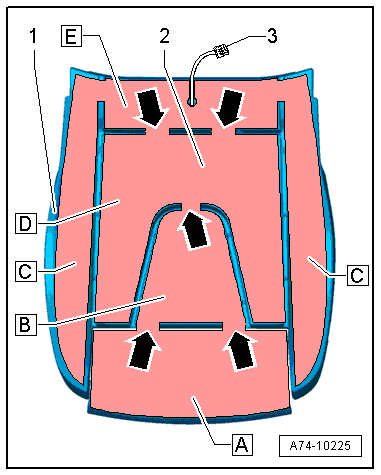

–	Cut off wire -3- directly at old seat heating element -2-.

Note

Leave old seat heating element on padding -1- and cover it with new seat heating element.

Installing

–	Align new seat heating element on padding.

Caution

t	Take care to attach the new seat heating element in such a way that it covers the old seat heating element exactly.

t	Detach protective foil from areas of heating element in bonding sequence.

t	When detaching protective foil, take care not to damage heating element and avoid creases when bonding.

–	Bond individual sections of heating element in sequence -A-, -B-, -D-, -E- and -C-.

–	Route wiring leading to individual heating zones in bottoms of openings -arrows-.

–	Pull wire -3- through slit in padding -1-.

Perform remaining installation in reverse order of removal.
