A4 Mk3

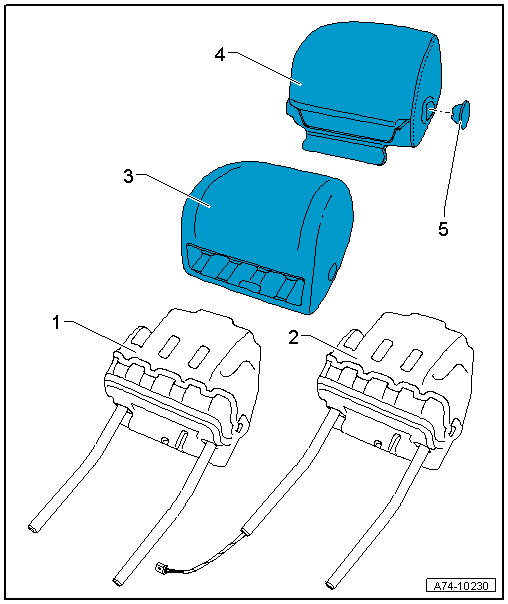

Exploded view of cover and padding for head restraint |
1 - | Mounting bracket for head restraint |
q | Head restraint with manual adjustment |
2 - | Mounting bracket for head restraint |
q | Head restraint with electric adjustment |
q | Only available as replacement part with padding -item 3-; for correct assignment refer to → Electronic parts catalogue |
3 - | Padding |
q | Removing and installing → Chapter |
q | Penetration for release button only for head restraint with manual adjustment |
4 - | Cover |
q | Removing and installing → Chapter |
q | Penetration for release button only for head restraint with manual adjustment |
5 - | Release button |
q | For height adjustment |
q | Clipped to mounting bracket for head restraint |
q | Only fitted for head restraint with manual adjustment |
