A4 Mk3

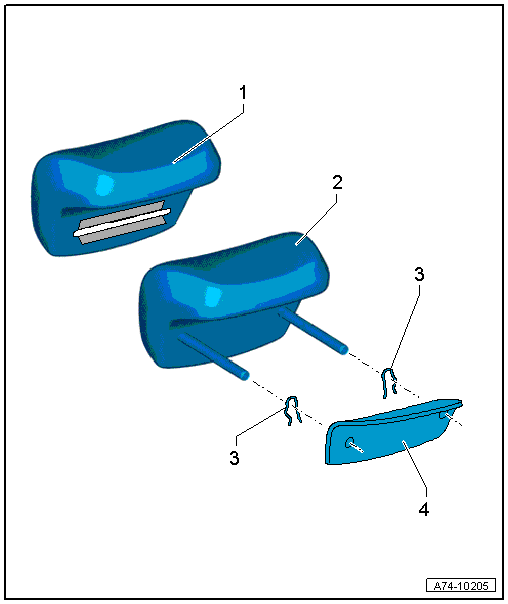

Exploded view of cover and padding for head restraint

Exploded view of cover and padding for head restraint
  Note
The illustration shows the head restraint version with leather cover. As the head restraint with fabric cover is not dismantled, this version is not shown in the exploded view.
1 - Cover
q   Equipment version: leather cover
q   Removing and installing → Chapter
  Caution
The cover can only be renewed on the head restraint version with leather cover. On the version with fabric cover, the cover cannot be renewed as it is foam-filled and also serves as a sheath for the padding.
2 - Mounting bracket
q   With padding
q   Equipment version: leather cover
q   Mounting bracket for head restraint is foam-fitted in padding and cannot be detached
3 - Long-arm spring
q   Removing and installing → Chapter
4 - Trim
q   Removing and installing → Chapter
