A4 Mk3

Overview of seat heating elements

Overview of seat heating elements
  Note

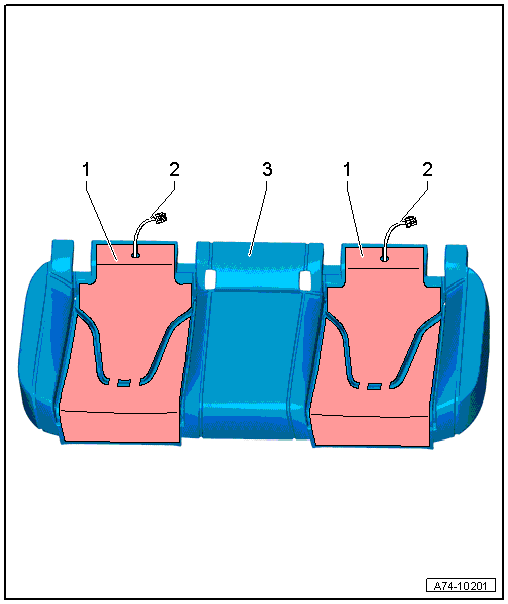

The illustration shows the position of the seat heating elements on a seat bench with no centre storage compartment. The position of the seat heating elements is similar on the seat bench with centre storage compartment.
1 - Seat heating element
q   Bonded to padding
q   Removing and installing → Chapter
2 - Electrical wiring
q   Permanently connected to seat heating element
3 - Padding
q   For seat bench
