A4 Mk3

Removing and installing trim
Removing and installing trim

Removing
–  Remove head restraint → Chapter.

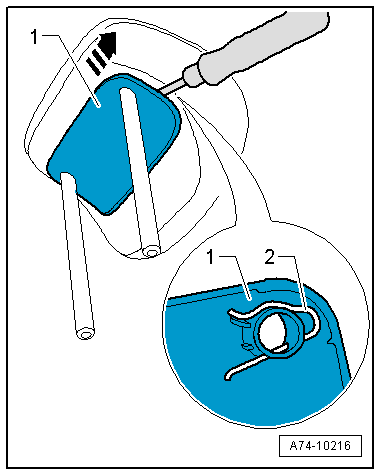

–  Press padding to side in direction of -arrow- on side of trim -1-.
–  When doing so, use a wide screwdriver to slightly bend open long-arm spring -2-.
–  At the same time, pull off trim on one side until it is released on one side.
–  Repeat procedure on other side.
–  Detach trim while at the same time bending open long-arm springs.
Installing
Install in reverse order of removal.
  A74-10216
