A4 Mk3

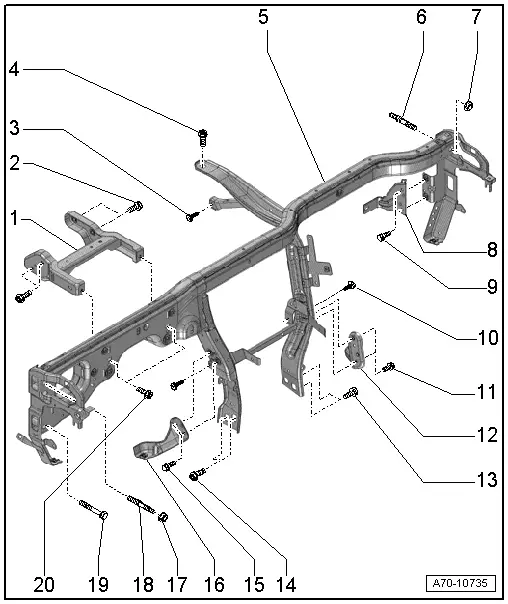

| Exploded view of central tube for dash panel |
| 1 - | Mounting bracket |
| q | Removing and installing → Chapter |
| 2 - | Bolt |
| q | 4x |
| q | 20 Nm |
| 3 - | Bolt |
| q | 3.6 Nm |
| 4 - | Bolt |
| q | 20 Nm |
| 5 - | Central tube |
| q | For dash panel |
| q | Removing and installing → Chapter |
| 6 - | Stud |
| q | 20 Nm |
| 7 - | Nut |
| q | Always renew after removing |
| q | 20 Nm |
| 8 - | Bracket |
| q | For air intake box |
| 9 - | Bolt |
| q | 2x |
| q | 9 Nm |
| 10 - | Bolt |
| q | 2x |
| q | 3.6 Nm |
| 11 - | Bolt |
| q | 2x |
| q | 9 Nm |
| 12 - | Bracket |
| q | For glove box |
| 13 - | Bolt |
| q | 2x |
| q | 20 Nm |
| 14 - | Bolt |
| q | 2x |
| q | 20 Nm |
| 15 - | Bolt |
| q | 2x |
| q | 9 Nm |
| 16 - | Bracket |
| q | For dash panel cover |
| 17 - | Nut |
| q | Always renew after removing |
| q | 20 Nm |
| 18 - | Stud |
| q | 20 Nm |
| 19 - | Bolt |
| q | 20 Nm |
| 20 - | Bolt |
| q | 2x |
| q | 20 Nm |
