Removing and installing door puller with switch mounting (front)

Note

Removal and installation are identical on the left and right.

Removing

–	Remove door trim → Chapter.

–	Remove armrest (front) → Chapter.

–	Remove operating unit for window regulator → Electrical system; Rep. gr.96.

–	Remove mirror adjustment switch → Electrical system; Rep. gr.96.

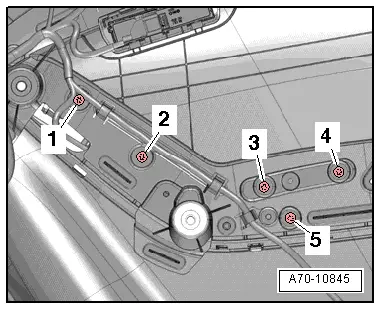

–	Unscrew bolts -1 ... 5- at rear of door trim.

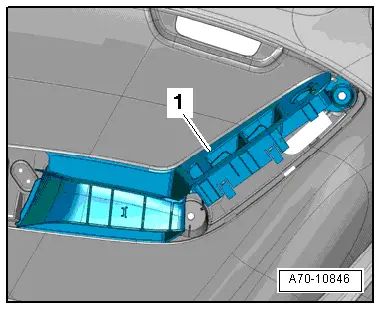

–	Carefully detach door puller -1- with switch mounting from door trim.

Installing

Install in reverse order of removal.

Tightening torque → Chapter
