Removing and installing trim for buttons E188
Removing and installing trim for buttons -E188-

Removing
–  Remove door trim → Chapter.
–  Unplug electrical connector -3- at rear lid remote release switch -E188-.
–  Release retaining clip -1- and press trim -2- with rear lid remote release switch -E188- out of door trim -arrow-.
–  Remove rear lid remote release switch -E188- from trim → Electrical system; Rep. gr.96.
Installing
Installation is carried out in the reverse order; note the following:
–  Press on trim until it engages audibly.

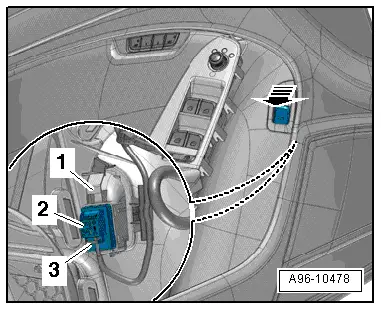

  A96-10478
