A4 Mk3

Removing and installing treble loudspeaker trim
Removing and installing treble loudspeaker trim
  Note
Removal and installation are identical on the left and right.

Removing
–  Remove door trim → Chapter.

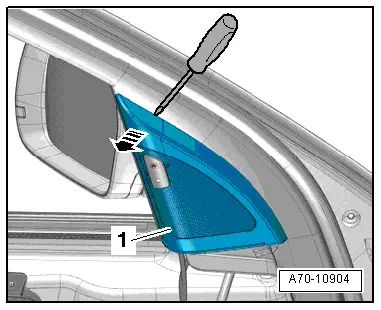

–  Use a narrow screwdriver to carefully prise trim -1- for treble loudspeaker off door -arrow- and detach.
Installing
Installation is carried out in the reverse order; note the following:
–  Press on treble loudspeaker trim until it engages audibly.
  A70-10904
