Removing and installing retainer for sun blind > < Exploded view of sun blind for side window

A4 Mk3

Removing and installing sun blind for side window
Removing and installing sun blind for side window
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing
–  Remove door trim (rear) → Chapter.

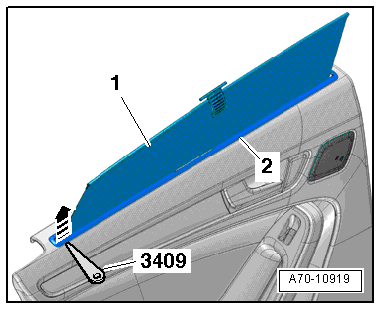

–  Use removal wedge -3409- to carefully unclip guide strip -2- from door trim -arrow-.
–  Pull sun blind -1- slightly out of door trim and guide lug out through guide strip.
  A70-10919
–  Unscrew bolts -1 ... 6- and -8-.
–  Detach sun blind -7- from door trim by swivelling it outwards slightly.
–  Feed lug for sun blind through gap in door trim and detach.
Installing
Installation is carried out in the reverse order; note the following:
–  Guide strip can only be inserted in door trim in one position.
Tightening torque → Chapter
  A70-10920
