A4 Mk3

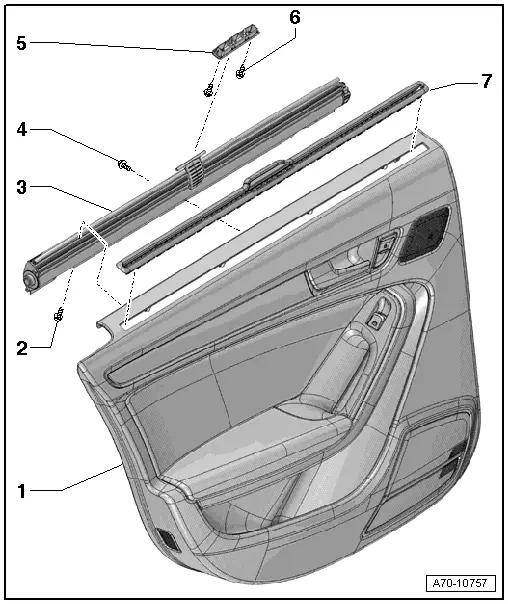

| Exploded view of sun blind for side window |
Note| Illustration shows rear sun blind (left-side). |
| 1 - | Door trim (rear) |
| q | Removing and installing → Chapter |
| 2 - | Bolt |
| q | For sun blind |
| q | 4x |
| q | 1.2 Nm |
| 3 - | Sun blind |
| q | For door window |
| q | Removing and installing → Chapter |
| 4 - | Bolt |
| q | For sun blind |
| q | 3x |
| q | 1.2 Nm |
| 5 - | Retainer |
| q | For sun blind |
| q | Removing and installing → Chapter |
| 6 - | Bolt |
| q | For retainer |
| q | 2x |
| q | 1.3 Nm |
| 7 - | Guide strip |
| q | Removing and installing → Chapter „Removing and installing sun blind for side window“ |
