Removing and installing window frame trim
Removing and installing window frame trim
  Note
Removal and installation are identical on the left and right.
Special tools and workshop equipment required

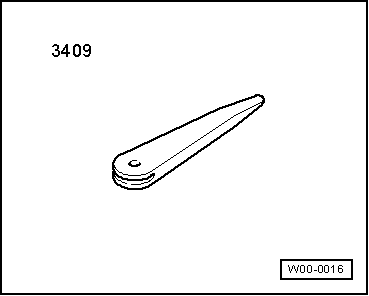

t  Removal wedge -3409-
  W00-0016
Removing
–  Lower door window.
–  Remove door trim (rear) → Chapter.
–  Equipment version with sun blind: Remove retainer for sun blind → Chapter.
–  Starting on inside of B-pillar (bottom), carefully prise off window frame trim -1- along window frame seal -arrow A- using removal wedge -3409-.
–  At the same time pull window frame trim downwards off window frame -arrow B- and detach.
  A70-10775
Installing

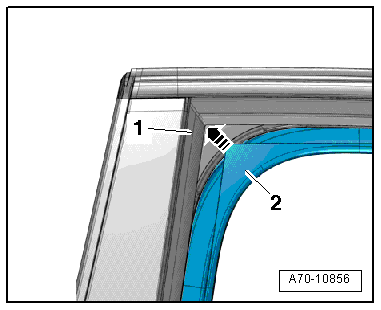

–  Starting in area of B-pillar (top) -arrow-, insert window frame trim -2- into window frame seal -1-.
Perform remaining installation in reverse order of removal.
  A70-10856
