A4 Mk3

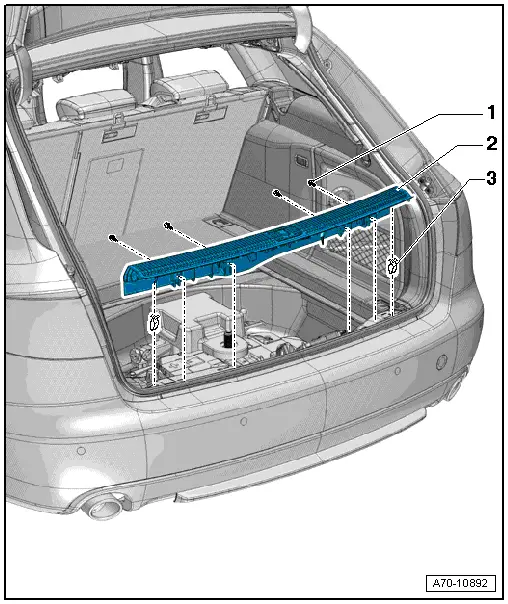

| Exploded view of rear cross panel trim |
| 1 - | Bolt |
| q | 4x |
| q | 1.5 Nm |
| 2 - | Rear cross panel trim |
| q | Removing and installing → Chapter |
| 3 - | Clip |
| q | 4x |
| q | Insert in trim |
| q | Renew if damaged or deformed |
