Removing and installing rear cross panel trim
Removing and installing rear cross panel trim
Special tools and workshop equipment required

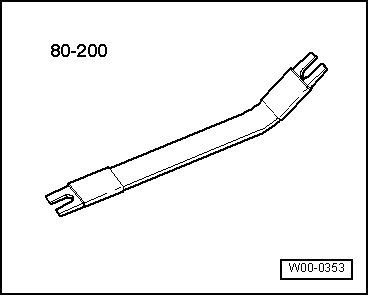

t  Removal lever -80 - 200-
  W00-0353
Removing
–  Remove luggage compartment floor (rear).
–  Remove bolts -2 ... 5-.

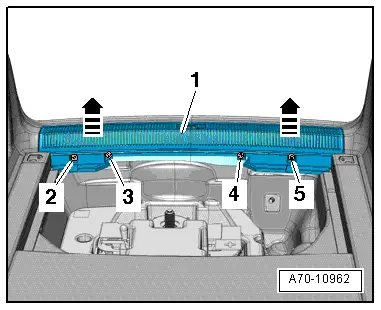

–  Working vertically upwards, unclip rear cross panel trim -1--arrows- using removal lever -80 - 200-.
Installing
Installation is carried out in the reverse order; note the following:
  Note
t  If there are still trim clips in the body mounting points, they must be removed and inserted in the trim when installing.
t  Check the clips for damage or deformation and renew them if necessary.
–  Press on rear cross panel trim until it engages audibly and fold lip of rear lid seal over rear cross panel trim.
Tightening torque → Chapter
  A70-10962
