A4 Mk3

Removing and installing retainer (front)
Removing and installing retainer (front)
  Note
Removal and installation are identical on the left and right.

Removing
–  Remove front luggage compartment floor (holder for vehicle tool kit) → Chapter.

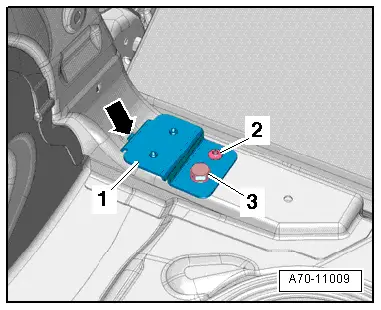

–  Remove bolts -2- and -3-.
–  Disengage retainer (front) -1- from body -arrow- and detach.
Installing
Install in reverse order of removal.
Tightening torque → Chapter
  A70-11009
